MIL-DTL-5099C
NOTES:
1. All dimensions are in inches.
2. Unless otherwise specified, dial tolerance ±0.016; pointer tolerance ±0.010; angles ±0.5°.
3. All dial graduations are partial radial lines.
4. Numerals and letters shall be in accordance with MS33558.
5. Thickness of pointer shall be not less than 0.010.
6. Balance end and hub of pointer shall be designed to suit conditions.
Height or
Width of line or
length
graduation
Material or finish 1
Marking
(±0.010)
(+0.005/-0.000)
Numerals 0, 10, 20, 30, 40, 50
0.156
0.020
Lettering
"CABIN PRESSURE ALTITUDE"
0.093
0.015
"X 1000 FT"
0.062
0.010
Lusterless white in
accordance with
Major graduations at 0, 5, 10, 15, etc.
As shown
0.020
FED-STD-595/37875
Minor graduations
As shown
0.012
Shaded portion of pointer
As shown
-
Unshaded portion of pointer
As shown
-
Lusterless black in
accordance with
Background of dial
-
-
FED-STD-595/37038
1
Figure shown in negative view.

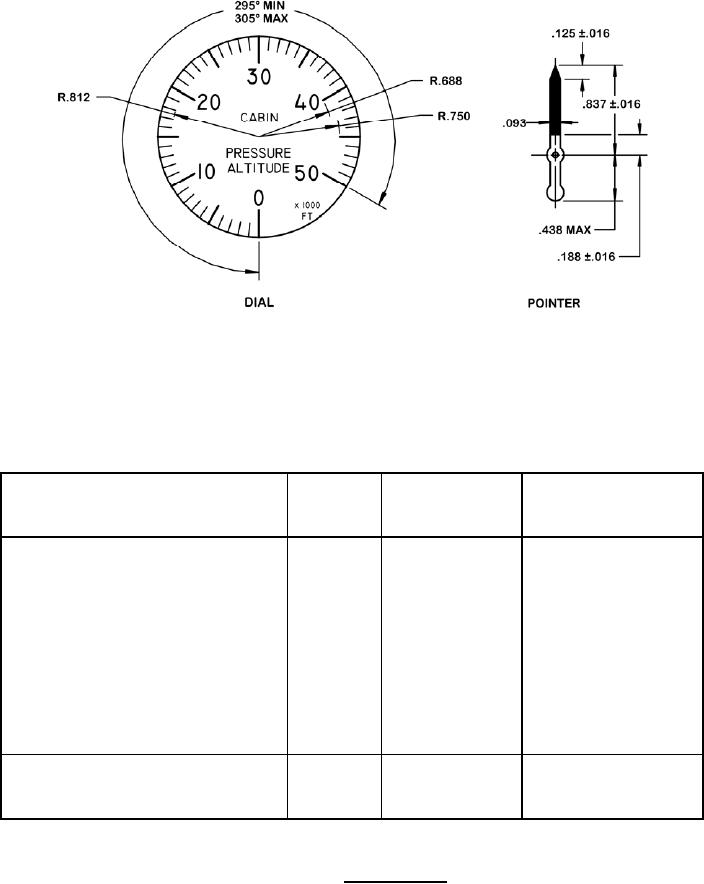

FIGURE 1. Dial markings.
6
