MIL-DTL-6019E
be designed so that minor repairs, such as replacement of cover glasses and pointers, can be easily
made by the personnel of the operating units without the aid of special tools.
3.4 Construction.
3.4.1 Threads.
3.4.1.1 Screw threads. Screw threads shall conform to MIL-S-7742.
3.4.1.2 Pipe threads. Pipe threads shall conform to SAE AS71051.
3.4.2 Cases. The cases for both the type I and type II gages shall be rain tight, except for
a small vent hole on the bottom or underside.
3.4.2.1 Type I.

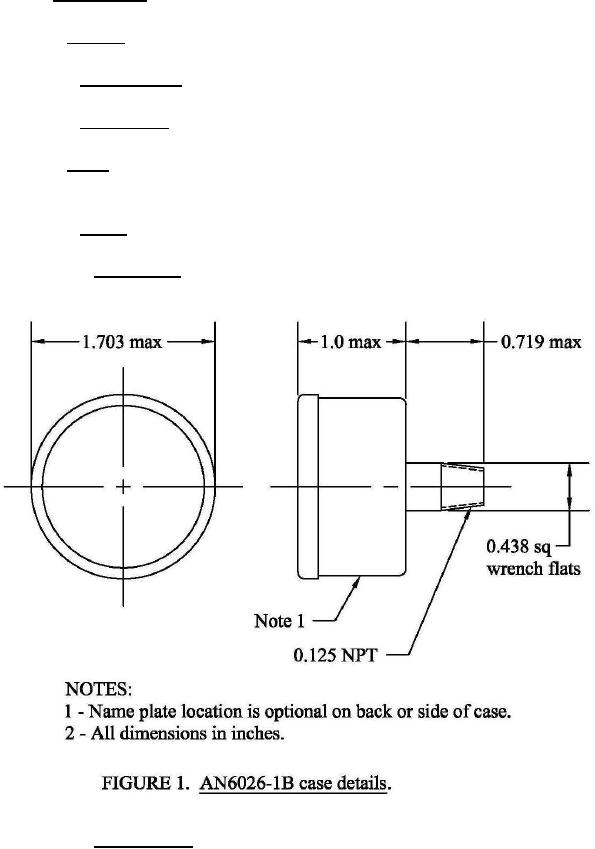

3.4.2.1.1 Case design. The case for type I gages shall be as specified in figure 1.
3.4.2.1.2 Case material. The case shall be made of eit
4
