MIL-DTL-6019E
Shaded part of pointer
White equivalent to
color chip 37875*
Graduation at 450
0.188 min.
0.031
Red equivalent to
color chip 31136*
Lettering "Full"
0.062
0.016
White equivalent to
color chip 37875*
Lettering "psi"
0.062
0.016
Background of dial
Black equivalent to
color chip 37038*
Unshaded part of pointer
Black equivalent to
color chip 37038*
*Color chips are identified in FED-STD-595.
3.4.5.2.1 Markings. Markings shall be sufficiently durable to withstand usage
encountered in service.
3.4.5.2.2 Numerals. Numerals shall distinctly indicate the graduation to which each
applies. Any confusion resulting in doubt as to which graduation the numeral applies shall be
cause for rejection. When several numerals are used in one group, the space between the numerals
shall be approximately 0.015 inch.

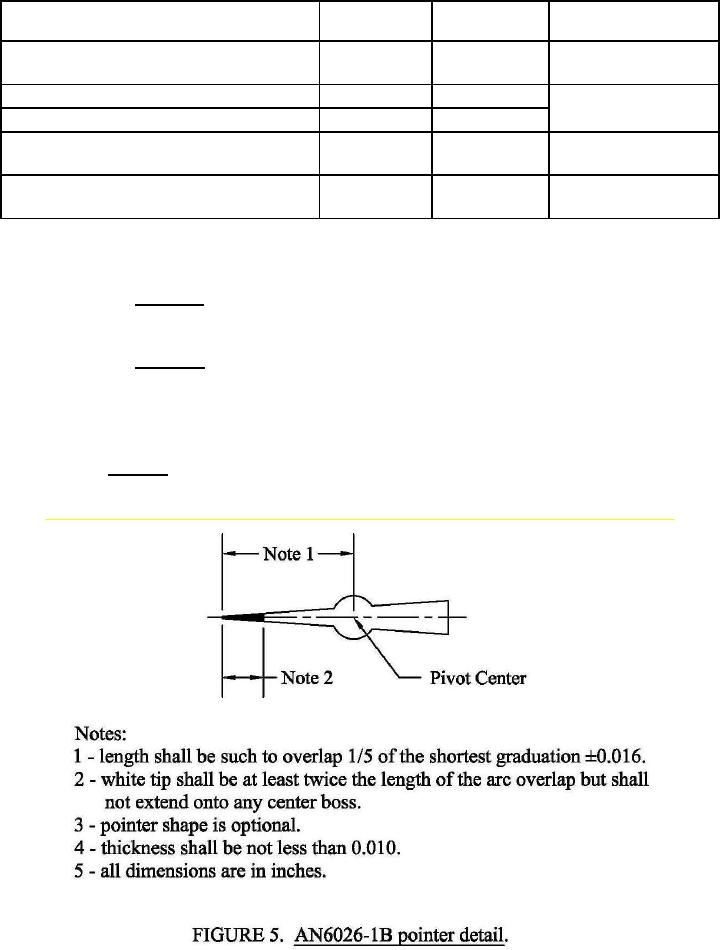

3.4.6 Pointers. The pointer for the type I gage shall be as shown in figure 5. The pointer
for the type II shall be as shown in figure 6.
10
