MIL-DTL-25446E

NOTES

1. All dimensions are in inches.

2. Unless otherwise specified, tolerances: 2 decimal places: �0.02; 3 decimal places: �0.010;

angles: �1�.

3. Overall length: 15.00 �0.50 from tip of bulb to disconnect assembly on longest lead.

4. Silver braze: QQ-B-654, grade IV.

5. Steel stem: SAE AMS-S-7720, UNS S30200, or S31600.

6. Flexible conduit armor (shown) or braided sheath: Stainless steel, UNS S30200.

7. Silver braze wires to terminals using QQ-B-654, grade IV.

8. Slot to pass freely around �0.135 locking pin. Break sharp edges of slot.

9. Steel cap: SAE AMS-S-7720, UNS S30200 or S31600, or ASTM A581/A581M, UNS S41600.

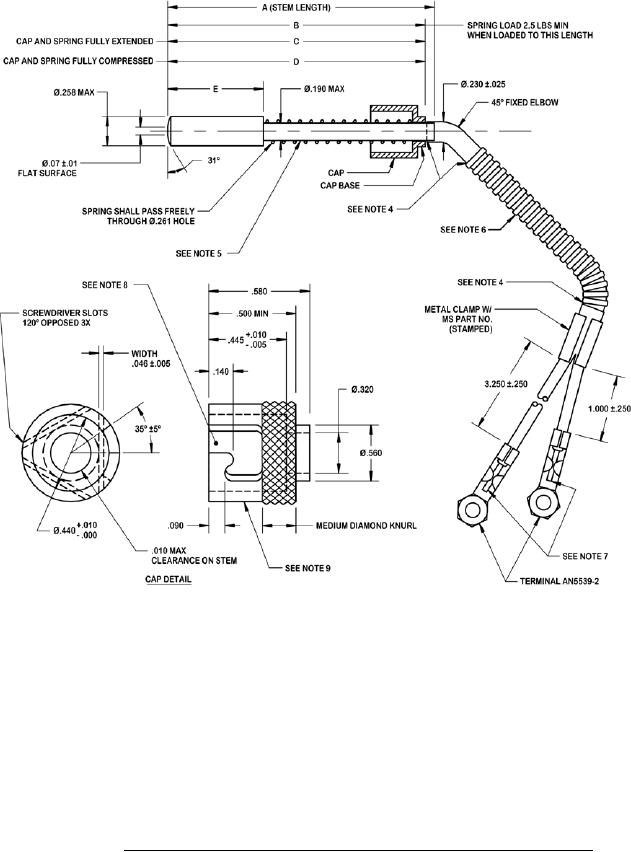

FIGURE 1. Transmitter; temperature, electrical resistance, (-50 �C to 300 �C).
