MIL-DTL-25446E
6.5 Interoperability. The sensor, spring, and bayonet locking cap of the temperature
transmitter are designed to connect to a corresponding female bayonet locking fitting in an
aircraft engine block. Bayonet locking fittings for PIN's MS24482-1 and MS24482-2 should
conform dimensionally to the dimensions shown in figure 1 and table I to allow secure
connection to a fitting of the basic dimensions shown in figure 2.

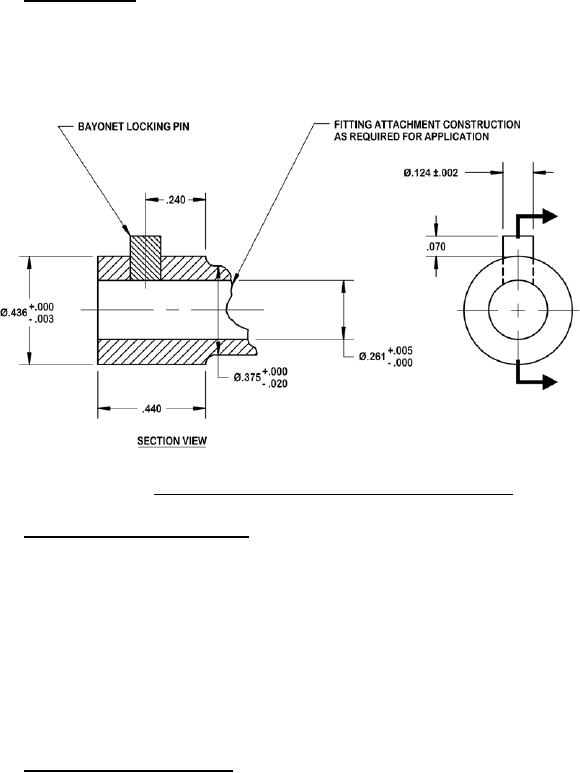

FIGURE 2. Female bayonet locking fitting - basic dimensions.
6.6 Subject term (key word) listing.
Electromotive
Emf
Iron constantan
Self heating
Sensor
Thermocouple
Thermosensor
Type J
6.7 Changes from previous issue. Marginal notations are not used in this revision to
identify changes with respect to the previous issue due to the extent of the changes.
