MIL-DTL-25867D
55° MIN
1
2
0
PSI
X1000
2,000 PSI GAGE
2
3
1
4
0
PSI
X1000
4,000 PSI GAGE

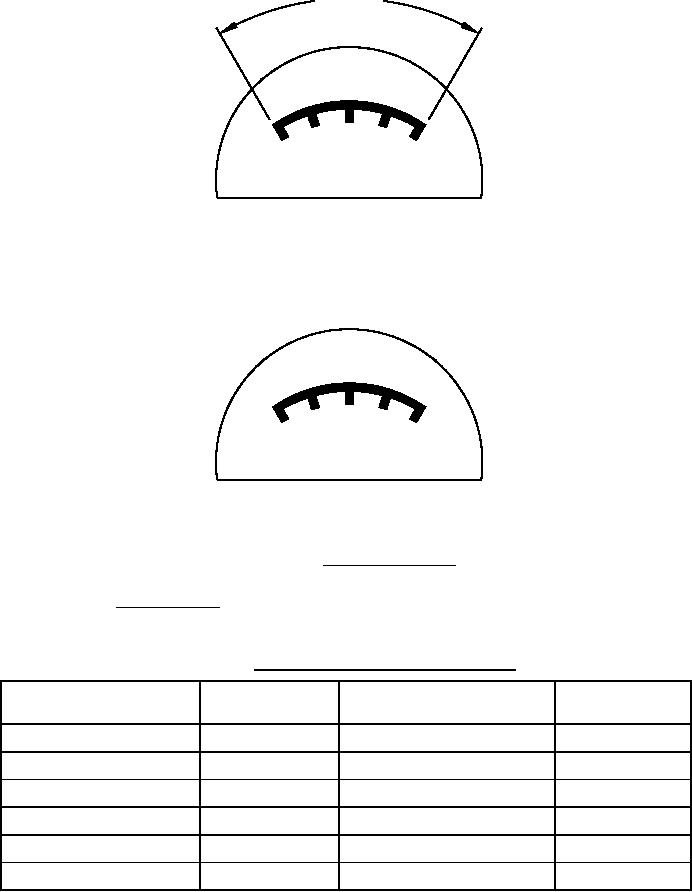

FIGURE 1. Dial configuration.
3.3.10.1 Dial markings. The dimensions and colors of the dial markings shall be in
accordance with table I. Color numbers shall conform to FED-STD-595.
TABLE I. Dial marking dimensions and colors.
Height or length, Width of line or graduation,
FED-STD-595
Marking
inch ± 1/64
inch ± 0.005
color number
Numerals 0, 1, 2, 3, 4
5/64
0.016
37875
Major graduations
1/16
0.031
37875
Minor graduations
3/64
0.031
37875
Scale arc
--
0.031
37875
Lettering PSI and X1000
3/64
0.010
37875
Background dial
--
--
37038
6
